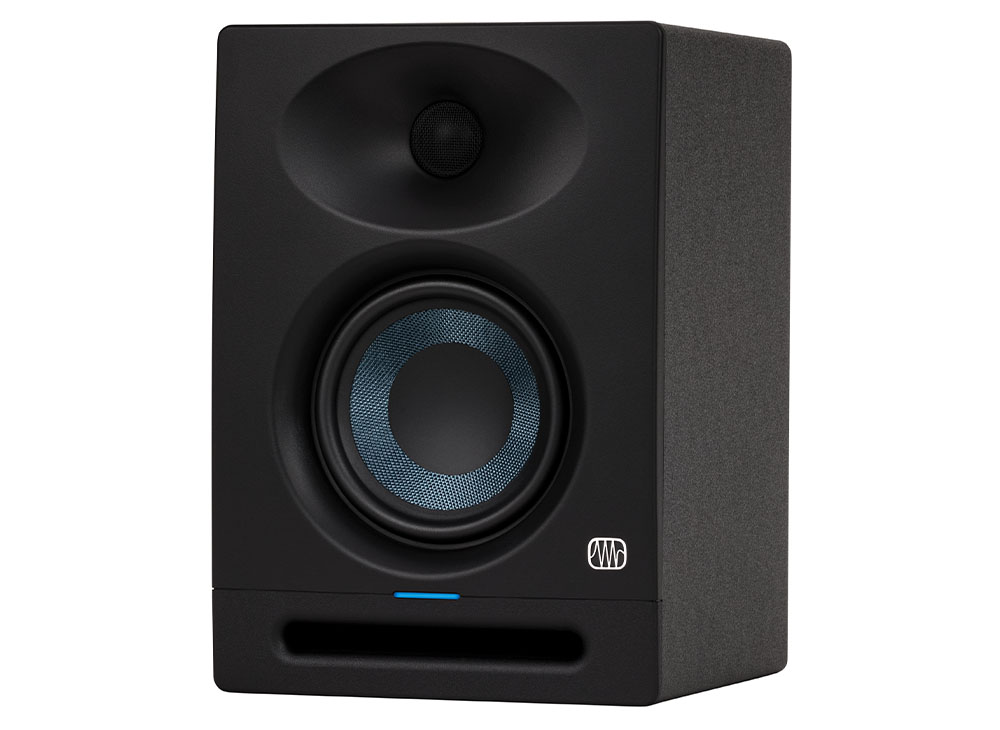

4.5-inch two-way active monitoring speaker，Equipped with EBM waveguide technology

Eris®Studio 4Setting a new standard for compact studio monitoring speakers. With its surprising low frequency limit and wide, controllable listening coverage, you can enjoy a high-quality and accurate monitoring experience even in the smallest mixing space. Eris Studio 4 is designed for home studios and small professional mixing rooms that pursue exceptional performance, combining flexible connectivity with sound accuracy to make it unique.

 The custom designed EBM (Elliptical Boundary Modeling) waveguide technology provides excellent high-frequency response, allowing you to hear the finest details in the mix, while the 120 degree wide horizontal projection creates a wide optimal listening area for realistic stereo sound. Narrow vertical projection can reduce reflections on your desktop, while the silk dome tweeter ensures fast and accurate transient reproduction.

 4.5The inch woven composite low-frequency unit produces tight and clear bass, with strong impact force, breaking the limit of the Eris Studio 4 small-sized box. The combination of a housing with a bass guide hole and a 50W power amplifier maximizes low-frequency response and allows the Eris Studio 4 to achieve an astonishing 55 Hz without a subwoofer!

Flexible input interface options allow you to connect almost any line level audio source, from mixing consoles to audio interfaces and other devices.

Functional Configuration

• 4.5 inch woven composite low-frequency transducer

• 1 inch (25 mm), lightweight silk dome, high-frequency transducer

• 120 ° (H) x 60 ° (V) EBM waveguide, suitable for extremely wide optimal listening range

• Front low-frequency guide hole, which can achieve excellent low-frequency reproduction and optimized resonance frequency suppression

• 50W, Class AB power amplifier

• Frequency response from 55 Hz to 20 kHz

• 100 dB SPL (peak at 1 meter)

• Acoustic tuning control: high frequency (± 6dB, continuously variable); Intermediate frequency (± 6 dB, continuously variable) and acoustic space (flat, -2, -4 dB), plus high pass filter (off, 80 Hz, 100 Hz)

• Anti RF interference, output current limitation, over temperature, transient, sub bass protection, and power amplifier "soft start" function (eliminating popping sounds when powered on)

• Built in power supply with IEC connector and power switch with LED indicator

• XLR and ¼ - inch balanced input, as well as RCA unbalanced input
